PRODUCT

Exterior Wall, Shingle and Tile Waterproofing

CMW-5

Shingle Waterproofing

  • Application

    Waterproofing and Protective Coating for asphalt shingle roof and exposed sheet

  • Volume/Color

    18 kg pail

  • Coverage Area

    Approx. 0.25–0.4 kg/㎡ per coat
    Apply 2 coats for optimal performance
    (Coverage may vary with substrate and application)

  • Features

    Single-component · Acrylic-Urethane Hybrid Waterproof Coating for Shingle Roofs · Non-yellowing finish for long-lasting durability

Product Details

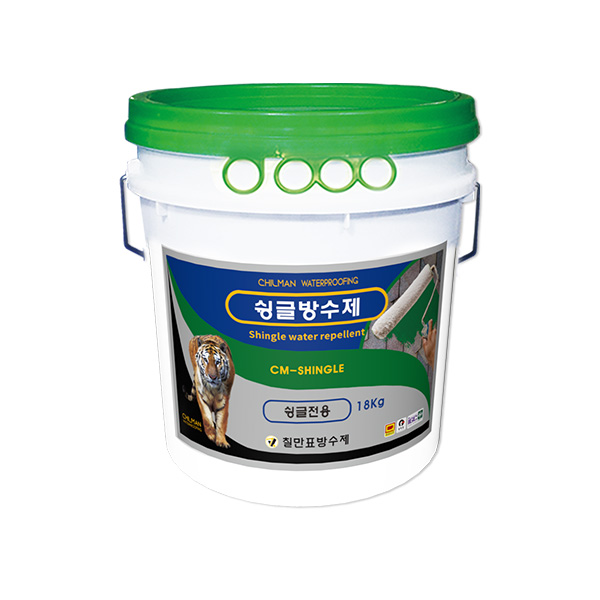

Shingle Waterproofing Coating

CMW-5

  1. • Single-component
  2. • Acrylic-Urethane Hybrid Waterproof Coating for Shingle Roofs
  3. • Non-yellowing finish for long-lasting durability



Benefits

  • UV- and weather-resistant with strong adhesion and long-term flexibility
  • Excellent bonding to shingles, bitumen membranes, and sloped roofing substrates
  • Available in green, reddish-brown, and gray
  • Easy to apply with a brush, roller, or spray



Recommended Use

  • Waterproofing and Protective Coating for asphalt shingle roof and
     exposed sheet
  • Protective coating over bitumen sheets and sloped roofing systems
  • Ideal for aged or weathered shingles requiring surface protection

Packaging &Coverage

  • Packaging :18 kg pail
  • Coverage : Approx. 0.25–0.4 kg/㎡ per coat
    Apply 2 coats for optimal performance
    (Coverage may vary with substrate and application)



Application Steps

  • Step 1 : Substrate Preparation
    Refer to page 5 “Pre-Application Checklist for Waterproofing"
    Repair damaged or missing shingles before applicationApply
    CMW-1 Substrate Hardener first
    if the shingle surface is old or deteriorated

  • Step 2 : Product Preparation & Mixing
    Stir before use; do not dilute with water.
  • Step 3 : Product Application
    Apply evenly with a brush, roller, or spray
  • Step 4 : Drying Time
    Proceed to next step once touch-dry (approx. 10 minutes to 2 hours)


Notes

  • Not suitable for flat or standing-water roof areas
  • Initial stickiness is a normal characteristic, but this will resolve naturally over time
  • Refer to P5 “Application, Storage &Safety Instructions”

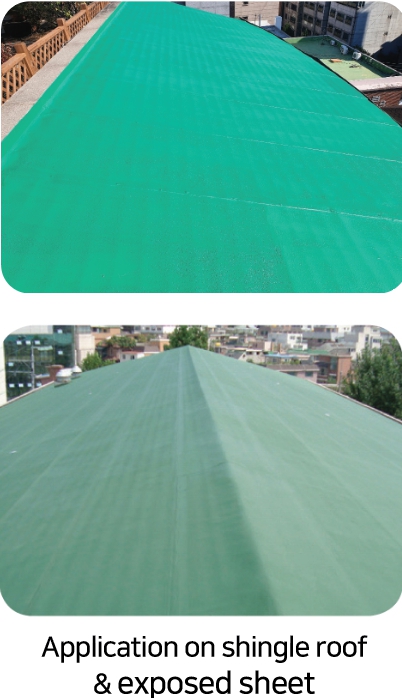

Application of Shingle Waterproofing Coating over waterproof sheet
